| Item |
T50 |
T70 |
| Detector Data |
| Type |
Uncooled FPA |
| IR resolution |
384×288 |
640×480 |
| Pixel pitch |
17μm |
| Spectral range |
7.5～14μm |
| NETD/Sensitivity |
25mK |
25mK |
| Lens Data |
| FOV |
24°×18° |
| Minimum imaging distance |
0.3m |
| IFOV |
1.13mrad |
0.68mrad |
| Focus |
Manual/Motor/Continuous autofocus/Laser assisted focusing |
| Lens recognition |
Automatic |
| Lens(optional) |
48°×36°, 12°×9° |

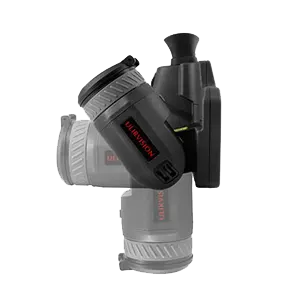

| lens rotation |
180° rotation |
| Image Performance |
| Display |
HD 5″ touch AMOLED, 1280×720 |
| Viewfinder |
0.5″ color OLED display, supporting manual zoom, 1920×1080 |
| Visual camera |
13 megapixel CMOS, autofocus, LED fill light |
| Frequency |
50Hz/60Hz |
| Amplification |
1X～35X continuous |
| Palette |
12 palettes (including iron red, rainbow, black hot and white hot, etc.) |
| Brightness |
Auto/Manual |
| Measurement |
| Temperature range |
-20℃～+600℃(can be extended to 1700℃) |
| Measurement accuracy |
5°C ~ 150°C, accuracy is ±1°C or ±1% of reading; for other temperature ranges, the accuracy is ±2°C or ±2% of reading, take the larger value |
| Measurement mode |
Real-time 20 movable spots, 10 movable rectangular areas and 10 circular areas (max./min. temp capture, avg. temp measure), 10 movable line temp measure, isothermal analysis, temp difference measure, temp alarm (sound, color) |
| Measurement correction |
Auto/Manual |
| Emissivity correction |
Adjustable from 0.01 to 1.0 or selected from list of materials |
| Background temperature correction |
Auto (according to the input background temp) |
| Atmospheric transmissivity correction |
Auto (according to the input distance, relative humidity, ambient temp) |
| Setting function |
Date/time, temp unit ℃/℉/K, language |
| Alarm |
| Sound and light alarm |
Yes |
| Image storage |
| Memory card |
64G |
| Single frame infrared image format |
JPEG, with 14-Bit measured data image |
| Single frame visible image format |
JPEG or stored with single frame image |
| Text annotation |
Support 30 preset text annotations(editable) |
| Voice annotation |
60s voice record, stored with per image via built-in microphone |
| Laser Indicator |
| Laser type |
Class 2, 1mW, 650nm red |
| Laser Ranging |
Measuring distance: 0.2m-50m |
| Interface |
| Power interface |
Yes |
| SD card slot |
Yes |
| Video output |
HDMI |
| Audio output |
Yes |
| USB |
USB TypeC: Data transmission, radiometric video streaming |
| WIFI |
Yes |
| Bluetooth |
Yes |
| GPS |
Yes |
| Compass |
Yes |
| Tripod |
1/4” -20 |
| Power System |
| Battery type |
Lithium battery (rechargeable) |
| Battery operating time |
4h continuous (room temperature) |
| External power |
DC: 5V |
| Charging type |
Two-seater charger or in camera |
| Power saving |
Yes |
| Environment Parameters |
| Operating temperature range |
-20℃～+50℃ |
| Storage temperature range |
-40℃～+70℃ |
| Humidity |
≤95%(non-condensing) |
| Vibration |
2G(IEC60068-2-6) |
| Shock |
25G(IEC60068-2-29) |
| Protection level |
IP54(IEC60529) |
| Physical data |
| Size |
183mm×160mm×88mm |
| Weight |
≤1.4kg(with battery and standard lens) |
| Packing |
| Standard |
Thermal imaging camera, 2 lithium batteries, battery charger, adapter, USB cable, SD card, hdmi cable, SD card reader, USB flash drive, warranty card, calibration book, carrying case, user manual |
| Quality assurance |
| CE |
Yes |
