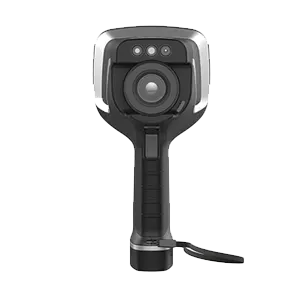

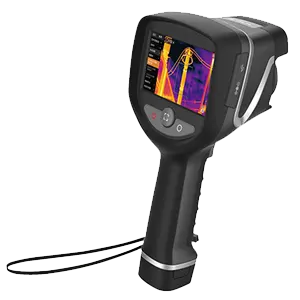

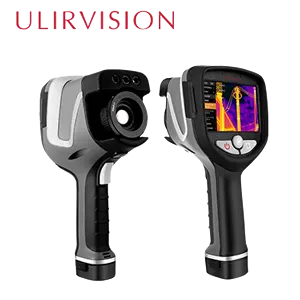

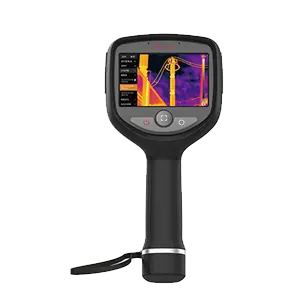

Overview of T5/T6 Thermal Imaging Camera
ULIRVISION T5|T6 are with ergonomic design, high performance with 5MP visual camera, interchangeable lens, 4,3” touch screen, manual & auto focus. It can provide powerful assistance for thermographers to have the most efficient instrument for maintenance inspections.
T5|T6 have a wide range temperature measurement to satisfy variety of thermograph applications and they enable you to identify the small temperature difference that could cause big problems.
| Item | T5 | T6 | |
| Detector Data | |||
| Type | Uncooled FPA | ||
| IR resolution | 384×288 | 640×480 | |
| Pixel pitch | 17μm | ||
| Spectral range | 7.5～14μm | ||
| NETD/Sensitivity | 35mK | 40mK | |
| Lens | |||
| FOV | 24°×18° | ||
| IFOV | 1.13mrad | 0.68mrad | |
| Focus | Auto/Manual | ||
| Lens recognition | Automatic | ||
| Lens(optional) | 48°×36°/12°×9° | ||
| Image Performance | |||
| Display | 4,3” touch screen,LCD with 800×480 pixels | ||
| Visual camera | 5.0 mega pixel | ||
| Frequency | 50Hz/60Hz | ||
| Zoom | 1X～10X continuous | ||
| Color palletes | 12 palletes (including iron, rainbow, white hot and black hot etc.) | ||
| Brightness | Manual | ||
| Measurement | |||
| Temperature range | -20℃～+600℃(can be extended to 1200℃) | ||
| Temperature accuracy | ±2℃/±2%(reading) | ||
| Spotmeter | 10 adjustable spots | ||
| Line profile | 5 Vertical/Horizontal | ||
| Area | 5 adjustable boxes & 3 adjustable circles with max./min./avg. temperature value | ||
| Isotherms analysis | Capture high/low temperature/interval | ||
| Alarm | Voice, color | ||
| Measurement correction | Auto/Manual | ||
| Emissivity correction | Adjustable from 0.01 to 1.0 or selected from list of materials | ||
| Background temperature correction | Auto | ||
| Atmospheric transmissivity correction | Auto | ||
| Setting function | Date/time, temperature unit ℃/℉/K, language | ||
| Image Storage | |||
| Storage media | 32G | ||
| Thermal image format | JPEG, with 14-Bit measured data image | ||
| Voice annotation | 60s voice record, stored with per image via built-in microphone | ||
| Text Annotation | Support 30 preset text annotations(editable) | ||
| Laser Point | |||
| Grade/Type | Class 2,1mW/635nmRed | ||
| Interfaces | |||
| Power interface | Yes | ||
| SD card slot | Yes | ||
| WIFI | Yes | ||
| Bluetooth | Yes | ||
| Video output | HDMI | ||
| USB | USB 2.0 | ||
| Tripod | 1/4” -20 | ||
| Power System | |||
| Battery type | Lithium battery | ||
| Battery operation time | 4h continuous | ||
| External power | DC: 12V | ||
| Charging system | Intelligent charger or in camera | ||
| Power saving | Yes | ||
| Environment Parameters | |||
| Operation temp range | -20℃～+50℃ | ||
| Storage temp range | -40℃～+70℃ | ||
| Humidity | ≤95%(Non-condense) | ||
| Vibration | 2G(IEC60068-2-6) | ||
| Shock | 25G(IEC60068-2-29) | ||
| Encapsulation | IP54(IEC60529) | ||
| Physical Data | |||
| Size | 261mm×123mm×114mm | ||
| Weight | ≤950g(with battery and standard lens) | ||
| Packing | |||
| Standard | Thermal imaging camera with standard lens, 2 lithium batteries, battery charger, adapter, USB cable, SD card, SD card reader, USB flash drive, warranty card, calibration book, carrying case, user manual | ||
| Quality assurance | |||
| CE | Yes | ||
Applications of T5/T6 Thermal Imaging Camera
- Building Diagnostics
- Electrical/Mechanical Inspection
- Research & Development
- Automation Applications
- Preventative & Predictive Maintenance
