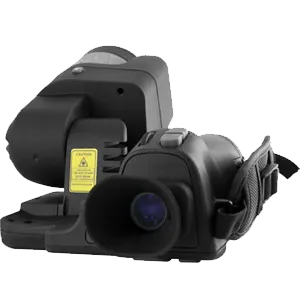

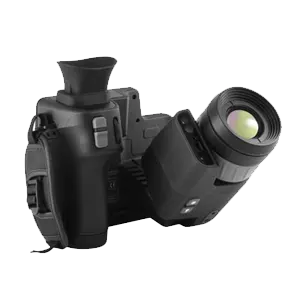

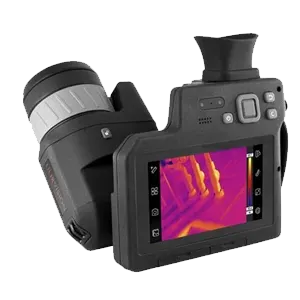

Overview of T100 Thermal Imaging Camera
T100 is the latest expert-level thermal imaging camera of ULIRVISION. Product adopts 1024×768 high-pixel aSi microthermal detector, manual & auto integrated lens, 180° rotation, laser assisted focusing, excellent imaging quality, and meets the strict requirements of industrial market for high-end thermal camera.Features of T100 Thermal Imaging Camera
1024×768 Uncooled detector
Continuous auto focusing | laser assisted focusing

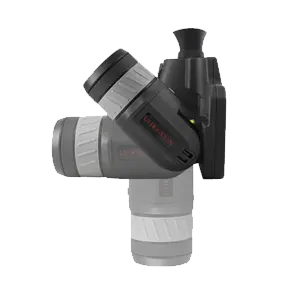

Automatic lens recognition, 180 ° rotation
Infrared | Visible Light | PIP | DSX, multiple image modes
Multiple measure modes: high and low temp auto tracking, line temp measure, isothermal analysis, area temp measure
5.5″ Touch screen, HD viewfinder, clearly visible in the sun
GPS, compass azimuth information is saved with the image
Technical Specifications of T100 Thermal Imaging Camera
Item | T100 |
Detector Data | |
Type | Uncooled FPA |
IR resolution | 1024×768 |
Pixel pitch | 17μm |
Spectral range | 7.5~14μm |
NETD/Sensitivity | 25mK |
Lens Data | |
FOV | 28°×21° |
Minimum imaging distance | 0.5m |
IFOV | 0.48mrad |
Focus | Manual/Motor/Continuous autofocus/Laser assisted focusing |
Lens recognition | Automatic |
Lens(optional) | 45°×33°, 12°×9°,7°×5.3° |
lens rotation | 180° rotation |
Image Performance | |
Display | HD 5.5″ touch AMOLED , 1920×1080 |
Viewfinder | 0.5″ color OLED display, supporting manual zoom, 1920×1080 |
Visual camera | 13 megapixel CMOS, autofocus, LED fill light |
Frequency | 50Hz/60Hz |
Amplification | 1X~35X continuous |
Palette | 12 palettes (including iron red, rainbow, black hot and white hot, etc.) |
Brightness | Auto/Manual |
Measurement | |
Temperature range | -20℃~+600℃(can be extended to 1700℃) |
Measurement accuracy | 5°C ~ 150°C, accuracy is ±1°C or ±1% of reading; for other temperature ranges, the accuracy is ±2°C or ±2% of reading, take the larger value |
Measurement mode | Real-time 20 movable spots, 10 movable rectangular areas and 10 circular areas (max./min. temp capture, avg. temp measure), 10 movable line temp measure, isothermal analysis, temp difference measure, temp alarm (sound, color) |
Measurement correction | Auto/Manual |
Emissivity correction | Adjustable from 0.01 to 1.0 or selected from list of materials |
Background temperature correction | Auto (according to the input background temp) |
Atmospheric transmissivity correction | Auto (according to the input distance, relative humidity, ambient temp) |
Setting function | Date/time, temp unit ℃/℉/K, language |
Alarm | |
Sound and light alarm | Yes |
Image storage | |
Memory card | 64G |
Single frame infrared image format | JPEG, with 14-Bit measured data image |
Text annotation | Support 30 preset text annotations(editable) |
Voice annotation | 60s voice record, stored with per image via built-in microphone |
Laser | |
Laser type | Class 2, 1mW, 650nm red |
Laser Ranging | Measuring distance: 0.2m-50m |
Interface | |
Power interface | Yes |
SD card slot | Yes |
Video output | HDMI |
Audio output | Yes |
USB | USB TypeC: Data transmission, radiometric video streaming |
WIFI | Yes |
Bluetooth | Yes |
GPS | Yes |
Compass | Yes |
Tripod | 1/4” -20 |
Power System | |
Battery type | Lithium battery (rechargeable) |
Battery operating time | 4h continuous (room temperature) |
External power | DC: 5V |
Charging type | Two-seater charger or in camera |
Power saving | Yes |
