Specifications
Product Model

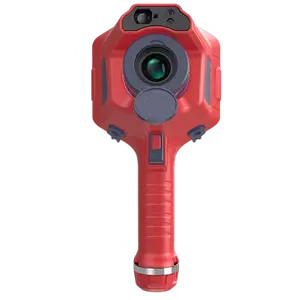

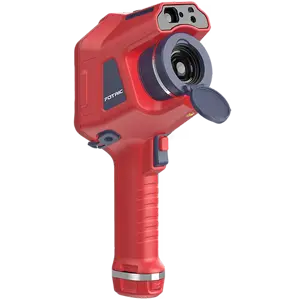

FOTRIC V7
.png)
IR Resolution | 640*480 |
Thermal Sensitivity（NETD) | 30mk(0.03° C)@30° C |
Field of View (FOV) | 25° x 19° for standard lens |
Focus Type | TurboFocus® system for continuous, laser-assisted, thermal contrast AF; Manual focus |
Temperature Measurement Range | -20 ° C ~ 120° C, 0 ° C ~ 650° C, 300-1550° C |
User-definable Markers | 16 spot markers, 8 (rectangle or circle), 2 measurement lines |
Accuracy | ± 2℃ or ± 2 %, whichever is greater, (ambient temp at 25℃ ) |
Storage Memory | Micro SD card, 128G, expandable up to 1TB |
Build-in Digital Camera (visible light) | 13MP industrial grade camera |
Palettes | 16 standard palettes: Grey, Iron10, Iron, Rainbow, Grey10, GreyRed, MidGrey, Yellow, Rain, Rain10, Blue, GlowBow, Medical, Medical10, MidGreen, Prism |
Battery | Rechargeable Li-ion, 7.4V, 3500mAh; ≥ 4 hours operating time per battery |
Weight | ＜ 1.0kg (lens not included) |
Protection Class | IP54, IEC60529:2013 |
Drop | Engineered to withstand 2 meters (6.5 feet) drop with standard lens |
Recommended Calibration Cycle | 2 years |
