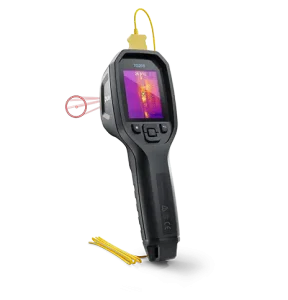

24:1 Spot IR Thermal Imaging Camera with Bullseye Laser and Type K Thermocouple
The Flir TG268 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, automotive, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting. Patented Flir MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 × 120 to 320 × 240 for superior detail to help you accurately target potential faults and troubleshoot repairs. Then with the Flir Meterlink® app, you can quickly and efficiently capture and compare readings, analyze and share images and videos, and create reports and easily share them with your team.
Accurately measure temperatures up to 400°C (752°F) with a 24:1 spot size ratio and bullseye laser pointer
Diagnose problems quickly with Flir-patented MSX image enhancement and Improve the details of native thermal images with super resolution, which allows you to upscale images to 320 × 240 (76,800 pixels) resolution
The IP54 rated Flir TG268 comes complete with a built-in LED worklight for better visibility in dark or poorly lit areas, a Type K thermocouple, and a 2 m drop test rating for durability.
Industrial Thermal Imaging Camera for Electrical, Mechanical, and High-Temperature Applications
| IR Resolution | 160 × 120 pixels |
|---|---|
| Detector Type | Uncooled microbolometer |
| Spectral Range | 8 – 14 µm |
| Field of View (FOV) | 57° × 44° |
| Focus | Fixed focus |
| Image Frequency | 8.7 Hz |
| Temperature Range | -25°C to 400°C |
|---|---|
| Accuracy | ±3°C or ±3% |
| Spot Size Ratio | 24:1 |
| Measurement Tools | Center spot, max/min temperature |
| Emissivity | Adjustable (0.1 – 1.0) |
| Display | 2.4-inch LCD |
|---|---|
| Display Resolution | 320 × 240 pixels |
| Image Modes | Thermal, MSX®, Visual overlay |
| Image Format | Radiometric JPEG |
|---|---|
| Internal Storage | Built-in memory |
| Interface | USB-C |
| Battery Type | Rechargeable Li-ion battery |
|---|---|
| Operating Time | Approx. 5 hours |
| Charging | USB charging |
| Weight | Approx. 390 g |
|---|---|
| Drop Test | 2 m |
| Protection Rating | IP54 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
Specifications are subject to change without notice. FLIR, MSX®, and TG268 are trademarks of Teledyne FLIR LLC.
