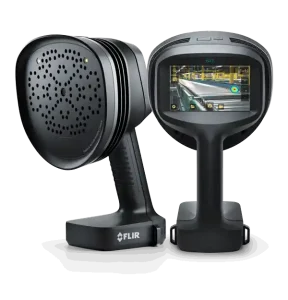

Industrial Acoustic Imaging Camera for Partial Discharge Detection, Pressurized Leak Detection and Mechanical Fault Detection
Precisely detect, locate, and measure compressed air leaks, gas leaks, and partial discharges. Identify and quantify both minor and elusive issues from up to 200 m (656 ft) away—boosting operational efficiency and ensuring safety.
Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing defects before they cause equipment failure.
Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.
| Acoustic Microphones | 124 low-noise MEMS microphones with real-time sound visualization |
|---|---|
| Supported Gases | Compressed air, hydrogen, CO₂, methane, natural gas, helium, argon, ammonia (detects all gases under sufficient pressure) |
| Mechanical Fault Detection | Yes (mechanical anomaly detection) |
| Leak Rate Sensitivity | 0.0032 l/min @ 2.5 m (8.2 ft), 0.0044 l/min @ 6 m (19.6 ft) |
| Detection Range | 0.3 m (1.0 ft) up to 200 m (656 ft) |
| Severity Assessment | Automatic AI-based severity evaluation including recommended actions onboard |
| Field of View (FOV) | 75° diagonal |
|---|---|
| Video Image Resolution | 1280 × 720 |
| Video Frame Rates | Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps |
| Digital Zoom | 8× digital zoom |
| Software Updates | Automatic Over-The-Air (OTA) wireless or via USB |
| Frequency Bandwidth | 2 kHz to 130 kHz |
|---|---|
| Detection Threshold Levels |
20 kHz: –7 dB SPL 35 kHz: 4 dB SPL 50 kHz: 10 dB SPL 80 kHz: 36 dB SPL 100 kHz: 51 dB SPL |
| Gas Leak Cost Quantification | Quantifies leak rate costs for compressed air, ammonia, argon, CO₂, helium, hydrogen, methane, natural gas, nitrogen |
| Partial Discharge Detection | Yes (mechanical fault & discharge detection) |
| Display Size | 5-inch resistive touchscreen (1280 × 720), TFT LCD |
|---|---|
| Screen Technology | Resistive touch, MIPI DSI interface |
| Battery Pack | Rechargeable Li-ion battery (RRC 2054): 14.4 V DC, 3.45 Ah, 49.68 Wh |
|---|---|
| Max Output | 16.8 V DC, 5 A |
| Charger Input | 19–26 V DC, 2.8 A; max output 17.4 V DC, 4.8 A |
| Battery Weight | ≈ 0.25 kg |
| Nominal Input Voltage | 12 V DC (max 17 V DC, limited) |
| Protection Rating | IP54 (dust & water protection) |
|---|---|
| Operating Temperature | –10°C to 50°C |
| Storage Temperature | –20°C to 70°C |
| Operating & Storage Humidity | 0–90% recommended |
Specifications are subject to change without notice. FLIR, Si2-Pro, and related trademarks are trademarks of Teledyne FLIR LLC. :contentReference[oaicite:1]{index=1}
