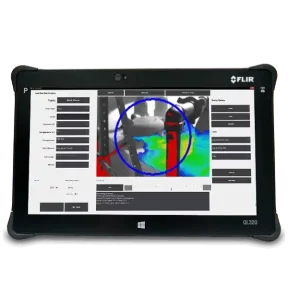

FLIR QL320

Quantitative Optical Gas Imaging System for FLIR G-Series Optical Gas Imaging Cameras (Gx620/Gx320/G620)

New technology is making it possible to quantify the gas leaks you find with optical gas imaging (OGI). Pairing a Providence Photonics QL320™ with a FLIR GFx320 or FLIR GF320 camera allows you to measure mass or volumetric leak rates for most hydrocarbons. And since the technology works with FLIR cameras, you can take your measurements while maintaining a safe distance from potentially hazardous leaks. The QL320 technology can be easy to master—with a little training. So FLIR and Providence Photonics are offering these two free webinars to get you up to speed on OGI and qOGI.

Safe Solution for Quantifying Gas Leaks

Quantifies Gas with Immediate Results

With the FLIR QL320, you can determine mass leak rates (g/h, lb/h, MT/h), volumetric leak rates (cc/min, L/min, or SCFH), or concentration (ppm-m) for most hydrocarbon gases. Measure the size of fugitive emissions from safe distances, as far as 100 feet.

Ensures Effective Readings and Reports

The FLIR QL320 has the built-in tools needed to validate leak surveys, plus a Δ temperature screening tool to determine suitablility of background conditions. In-field reporting includes archiving of measurements, colorized video and raw data for analysis and post-processing.

Streamlined In-Field Results with Q-Mode

Used with a FLIR OGI camera’s Q-Mode, the QL320 gathers relative information in the camera and post-processes the data for quantified results without the need to tether directly to the camera.

FLIR QL320 Specifications

Imaging & Optical

Compatible Cameras	FLIR Gx620, FLIR Gx320, FLIR G620
Display Resolution	1920 × 1080
Display Size	294.6 mm (11.6 in)
Image Modes	Single image snapshot with colorized plume and quantitative result

Measurement & Analysis

Measurement Modes	Mass leak rates (g/h, lb/h, MT/h), volumetric leak rates (cc/min, L/min, SCFH), or concentration (ppm-m)
Measurement Tools	Δ temperature screening, plume highlighting, colorized gas concentration profile

Communication & Data Storage

Communication	Bluetooth® v5.0, 4G LTE mobile broadband
Input	On-screen keyboard; 6 buttons (1 user-definable)
Interface	microSDXC card reader, USB 3.0 (Type A) × 2

General

Dimensions	308 × 200 × 29 mm (12.125 × 7.875 × 1.125 in)
Weight	1.24 kg (2.73 lbs)

User Interface

Display Technology	11.6-inch sunlight readable TFT LCD capacitive touchscreen
Touchscreen	Reinforced touchscreen with scratch- and shatter-resistant film

Power

Battery Type	Rechargeable Li-ion battery; 11.1 V, 3950 mAh, up to 8 hours operation
Power Supply	AC adapter 100–240 V, 50/60 Hz, 65 W

Environmental & Certifications

Environmental Rating	ANSI/ISA 12.12.01-2000 (Class I, Division 2), IP65 ingress protection

Specifications are subject to change without notice. FLIR and QL320 are trademarks of Teledyne FLIR LLC.
