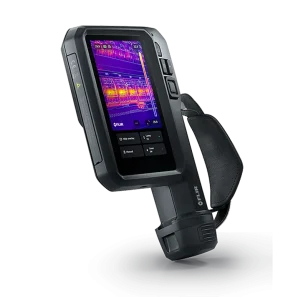

App-Enabled Thermal Imaging Camera
The Flir i64 brings the power of NFPA 70B-certified thermal inspections to every technician, no matter their experience level. Built on the new ACE operating system, it works just like a smartphone for thermography—powered by apps, connected to the cloud, and ready to scale across teams. With high-resolution 480 × 640 thermal imaging, an intuitive 5” touchscreen, and rugged, glove-friendly design, the i64 provides sharper detail and greater diagnostic confidence, helping teams detect smaller faults earlier and improve overall asset reliability.
With the advantage of Flir, 3rd-party, and custom apps, iXX-Series cameras simplify inspections and improve workflow for increased productivity. Apps can reduce the steps between data gathering and consumption, letting you work the way that makes the most sense for your organization.
On-board apps can flatten the learning curve, provide safety information, host training, and offer remote support so inexperienced users can perform expert-level inspections.
Flir iXX cameras can host a range of apps—Flir-made, 3rd-party, and custom—designed to address communication, documentation or decision-making needs.
High-Resolution App-Enabled Thermal Camera for Professional Inspections
| IR Resolution | 480 × 640 pixels |
|---|---|
| Thermal Sensitivity (NETD) | < 40 mK at 30°C |
| Field of View (FOV) | 38° × 49° |
| Minimum Focus Distance | 0.5 m |
| Image Frequency | 30 Hz |
| Focus | Fixed focus |
| Spectral Range | 7.5 – 13 µm |
| Temperature Range |
−20°C to 200°C 10°C to 550°C |
|---|---|
| Accuracy | ±2°C or ±2% |
| Measurement Tools |
Center spot, box with min/max, Isotherm (above/below), Delta T (NFPA 70B compliant) |
| Emissivity Adjustment | Variable 0.1 – 1.0 with predefined material table |
| Display | 5-inch, 720 × 1280 color LCD |
|---|---|
| Touch Screen | Capacitive touch |
| Image Modes | MSX®, Thermal, Picture-in-Picture, Digital Camera |
| Laser Pointer | Class 2, automatically aligned with IR image |
| Image Storage | JPEG with 14-bit radiometric measurement data |
|---|---|
| Interfaces | USB-C, DisplayPort over USB-C, Wi-Fi (2.4 & 5 GHz) |
| Cloud Services | FLIR Ignite™, Assetlink™ |
| Battery Type | Rechargeable Lithium-ion battery |
|---|---|
| Operating Time | Up to 4 hours (typical use) |
| Charging Time | 2 hours in charger / 4 hours to 90% in-camera |
| Weight | 0.8 kg (including battery) |
|---|---|
| Dimensions | 225 × 136 × 73 mm |
| Ingress Protection | IP54 |
| Operating Temperature | -15°C to 50°C |
Specifications are subject to change without notice. FLIR and MSX® are registered trademarks of Teledyne FLIR LLC.
