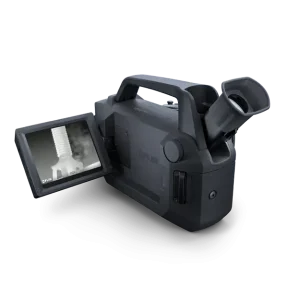

Optical Gas Imaging (OGI) Camera for Sulfur Hexafluoride (SF₆)
The FLIR G306 accurately measures temperatures from -40°C to 500°C (-40°F to 932°F) and FLIR’s patented High-Sensitivity Mode (HSM) makes (SF₆) and other industrial gas leaks stand out more clearly while allowing you to efficiently scan thousands of components
Built-in Wi-Fi and Bluetooth® allow you to connect to smartphones or tablets and effortlessly edit and store images in the cloud, or wirelessly transfer files using the included FLIR Ignite™ cloud service
Comfortably operate and interact with your G306 thanks to a rotating 10.16 cm (4 in) LCD touchscreen, which allows you view targets from any direction
Specialized OGI Camera for SF₆ Gas Leak Detection
| IR Resolution | 320 × 240 pixels |
|---|---|
| Detector Type | Cooled MWIR (Quantum Well Infrared Photodetector – QWIP) |
| Spectral Range | 10.3 – 10.7 µm (optimized for SF₆) |
| Thermal Sensitivity (NETD) | < 20 mK |
| Field of View (FOV) | 23° × 17° |
| Focus | Manual |
| Image Frequency | 30 Hz |
| Target Gas | Sulfur Hexafluoride (SF₆) |
|---|---|
| Optical Gas Imaging (OGI) | Yes |
| Leak Visualization | Real-time visualization of low-concentration gas leaks |
| LDAR Compliance | Suitable for regulatory and preventive LDAR inspections |
| Display | 4.3-inch LCD |
|---|---|
| Display Resolution | 800 × 480 pixels |
| Image Modes | Gas visualization, thermal imaging |
| Image Format | Radiometric JPEG |
|---|---|
| Video Recording | Yes |
| Internal Storage | Internal memory |
| Interfaces | USB, HDMI |
| Battery Type | Rechargeable Li-ion battery |
|---|---|
| Operating Time | Approx. 3 hours per battery |
| Charging | External charger |
| Weight | Approx. 2.4 kg (including battery) |
|---|---|
| Protection Rating | IP54 |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
Specifications are subject to change without notice. FLIR and G306 are trademarks of Teledyne FLIR LLC.
High-Sensitivity OGI Camera for SF₆ & Industrial Gas Detection
⭐ Best for LDAR Compliance| Detector Resolution | 320 × 240 (cooled MWIR) |
|---|---|
| Spectral Range | 10.3 – 10.7 µm (SF₆ optimized) |
| Primary Use | Electrical substations & LDAR programs |
| Compliance | Meets IEC & environmental inspection standards |
| Detector Type | Cooled Quantum Well Infrared Photodetector (QWIP) |
|---|---|
| NETD | < 20 mK |
| Field of View | 23° × 17° |
| Focus | Manual |
| Image Frequency | 30 Hz |
| Target Gas | SF₆ (Sulfur Hexafluoride) |
|---|---|
| Optical Gas Imaging | Yes (real-time visualization) |
| Leak Detection | Subtle & low-concentration gas leaks |
| LDAR Use | Excellent for regulatory & preventive inspections |
| Display | 4.3-inch LCD (800 × 480) |
|---|---|
| Battery Type | Rechargeable Li-ion |
| Operating Time | Approx. 3 hours per battery |
| Weight | Approx. 2.4 kg (with battery) |
| Protection Rating | IP54 |
| Detector Resolution | 320 × 240 (cooled MWIR) |
|---|---|
| Spectral Range | 10.3 – 10.7 µm |
| Best For | LDAR & substation gas inspections |
| NETD | < 20 mK |
|---|---|
| FOV | 23° × 17° |
| Focus | Manual |
| Target Gas | SF₆ |
|---|---|
| OGI | Yes |
| LDAR Compliance | Excellent |
| Battery | Rechargeable Li-ion |
|---|---|
| Operating Time | ~3 hours |
| IP Rating | IP54 |
Specifications are subject to change without notice. FLIR and G306 are trademarks of Teledyne FLIR LLC.
