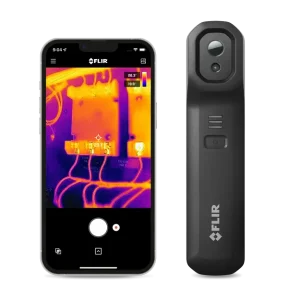

Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices
Flir Edge Series cameras feature our unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX happens in real time so you can see it immediately on-screen.

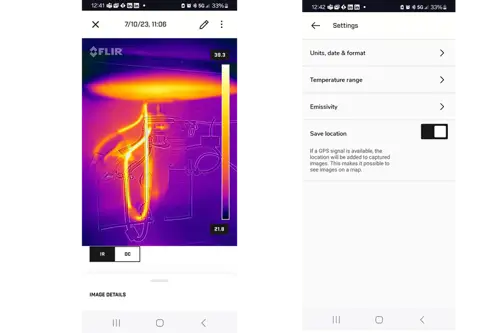

Flir One Series cameras connect to your smart device through the Flir One app, available on Google Play and the Apple App Store. Once connected, the app displays a live feed from your Flir One camera and can upload your recorded images and videos to the Flir IgniteTM cloud. You can also use the app to change camera and display settings, access help articles, activate step-by-step inspection guides, and find third-party apps for your specific application.
Flir One-compatible mobile apps can offer inspection, imaging, and reporting solutions tailored to your specific needs. Featured examples include:
Check out all the available apps—or, if you are interested in developing an app or integrating thermal into your app, create a developer account today.
Flir One-compatible mobile apps can offer inspection, imaging, and reporting solutions tailored to your specific needs. Featured examples include:
Professional Wireless Thermal Imaging Camera for Smartphones & Industrial Inspections
| IR Resolution | 160 × 120 pixels |
|---|---|
| Thermal Sensitivity (NETD) | < 70 mK |
| Field of View | 54° × 42° |
| Minimum Focus Distance | 0.15 m |
| Image Frequency | 8.7 Hz |
| Focus | Fixed focus |
| Spectral Range | 8 – 14 µm |
| Temperature Range | -20°C to 400°C |
|---|---|
| Accuracy | ±3°C or ±3% |
| Measurement Tools | Spot, max/min temperature |
| Emissivity Adjustment | Adjustable |
| Mobile App | FLIR ONE App |
|---|---|
| Wireless Connection | Wi-Fi & Bluetooth |
| Image Storage | Radiometric JPEG (on mobile device) |
| Cloud Service | FLIR Ignite™ |
| Battery Type | Rechargeable Li-ion battery |
|---|---|
| Operating Time | Up to 2.5 hours continuous use |
| Charging | USB-C charging |
| Weight | Approx. 153 g |
|---|---|
| Drop Test | 2 m |
| Protection Rating | IP54 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
Specifications are subject to change without notice. FLIR, EDGE™, MSX®, and Ignite™ are trademarks of Teledyne FLIR LLC.
