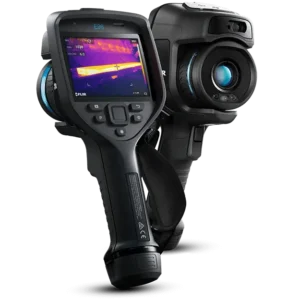

FLIR E96

Advanced Thermal Imaging Camera

The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.

Enhanced Resolution, Faster Inspections

Outstanding Thermal Imagery

The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most vibrant, easiest-to-interpret images in its class.

One lens, two fields of view

Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one push of a button.

Streamlined Reporting

Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. (*Optional accessory software)

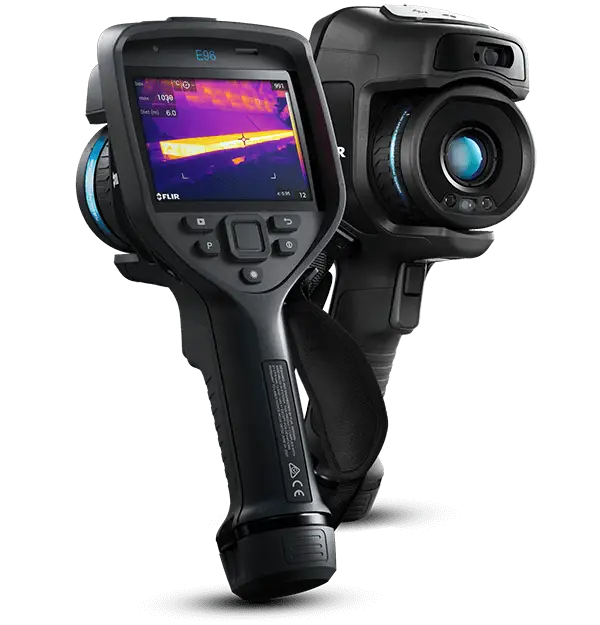

FLIR E96 Thermal Imaging Camera

Advanced High-Resolution Thermal Camera for Electrical & Mechanical Inspections

Key Features

High-resolution 640 × 480 thermal detector
Interchangeable AutoCal™ lenses
FLIR Vision Processing™ with MSX® and UltraMax®
Laser-assisted autofocus for fast and precise focus
On-camera inspection route support
Built-in Wi-Fi and Bluetooth connectivity

Main Applications

Electrical inspections (panels, substations, transformers)
Mechanical inspections and condition monitoring
Predictive and preventive maintenance
Facility maintenance and energy audits
Industrial, manufacturing, and utility environments

Imaging & Optical Specifications

IR Resolution	640 × 480 pixels
Thermal Sensitivity (NETD)	< 30 mK at 30°C
Field of View (Standard Lens)	24° × 18°
Minimum Focus Distance	0.15 m
Image Frequency	30 Hz
Focus	Laser-assisted autofocus, manual focus
Spectral Range	7.5 – 14 µm

Measurement

Temperature Range	−20°C to 120°C 0°C to 650°C
Accuracy	±2°C or ±2%
Measurement Tools	Spot meters, area (min/max/avg), Isotherms, Delta T
Emissivity Adjustment	Variable from 0.01 to 1.0

Display & User Interface

Display	5-inch LCD, 1280 × 720 pixels
Touch Screen	Capacitive touchscreen
Image Modes	Thermal, MSX®, Picture-in-Picture, Digital Camera

Storage & Connectivity

Image Storage	Radiometric JPEG
Storage Media	Removable SD card
Interfaces	USB-C, HDMI, Wi-Fi, Bluetooth
Cloud Services	FLIR Ignite™

Power System

Battery Type	Rechargeable Li-ion battery
Operating Time	Approx. 4 hours per battery
Battery System	Replaceable, hot-swappable
Charging	In-camera or external charger

Physical & Environmental

Weight	Approx. 1.0 kg (including battery)
Protection Rating	IP54
Drop Test	2 m
Operating Temperature	-15°C to 50°C
Storage Temperature	-40°C to 70°C

Specifications are subject to change without notice. FLIR, MSX®, UltraMax®, and Ignite™ are trademarks of Teledyne FLIR LLC.
