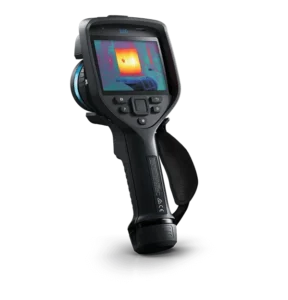

FLIR E86

Advanced Thermal Imaging Camera

The FLIR E86 is packed with high-performance features needed for fast, accurate detection, and when paired with a FLIR FlexView™ dual field-of-view lens you can instantly switch from wide-area to telephoto scanning. This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E86 images directly from the camera to the cloud for easy, secure storage and sharing.

Enhanced Resolution, Faster Inspections

Laser Distance Measurement
The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²).
Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one push of a button.
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E86 streamline your workday. (*Optional accessory software)

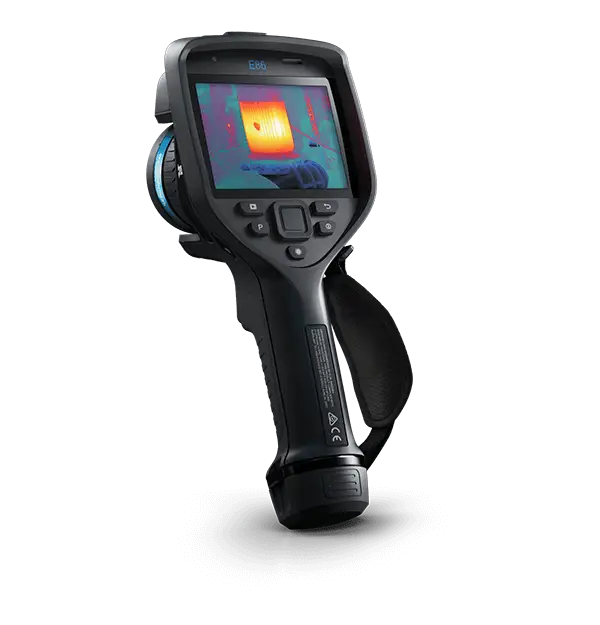

FLIR E86 Thermal Imaging Camera

Advanced Professional Thermal Camera for Electrical and Mechanical Inspections

Key Features

  • High-resolution 464 × 348 thermal detector
  • Interchangeable AutoCal™ lenses
  • FLIR Vision Processing™ with MSX® and UltraMax®
  • Laser-assisted autofocus for fast and accurate focus
  • Inspection route support with on-camera guidance
  • Integrated Wi-Fi and Bluetooth connectivity

Main Applications

  • Electrical inspections (panels, substations, switchgear)
  • Mechanical inspections and fault detection
  • Predictive and preventive maintenance programs
  • Facility maintenance and energy audits
  • Industrial and utility environments

Imaging & Optical Specifications

IR Resolution 464 × 348 pixels
Thermal Sensitivity (NETD) < 30 mK at 30°C
Field of View (Standard Lens) 24° × 18°
Minimum Focus Distance 0.15 m
Image Frequency 30 Hz
Focus Laser-assisted autofocus, manual focus
Spectral Range 7.5 – 14 µm

Measurement

Temperature Range −20°C to 120°C
0°C to 650°C
Accuracy ±2°C or ±2%
Measurement Tools Spot meters, area (min/max/avg),
Isotherms, Delta T
Emissivity Adjustment Variable from 0.01 to 1.0

Display & User Interface

Display 4-inch LCD, 800 × 480 pixels
Touch Screen Capacitive touchscreen
Image Modes Thermal, MSX®, Picture-in-Picture, Digital Camera

Storage & Connectivity

Image Storage Radiometric JPEG
Storage Media Removable SD card
Interfaces USB-C, HDMI, Wi-Fi, Bluetooth
Cloud Services FLIR Ignite™

Power System

Battery Type Rechargeable Li-ion battery
Operating Time Approx. 4 hours per battery
Battery System Replaceable, hot-swappable
Charging In-camera or external charger

Physical & Environmental

Weight Approx. 1.0 kg (including battery)
Protection Rating IP54
Drop Test 2 m
Operating Temperature -15°C to 50°C
Storage Temperature -40°C to 70°C

Specifications are subject to change without notice. FLIR, MSX®, UltraMax®, and Ignite™ are trademarks of Teledyne FLIR LLC.
