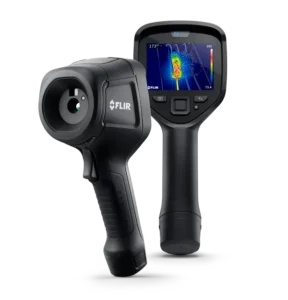

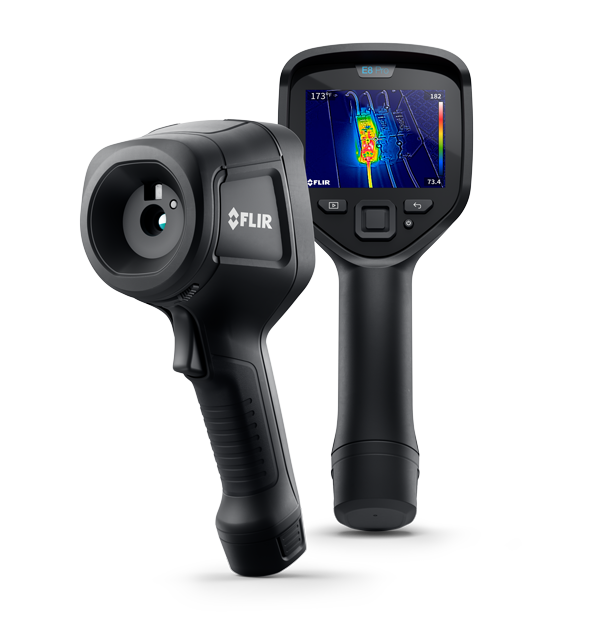

Pro-Series Infrared Camera with Ignite™ Cloud
All Ex Pro-Series thermal cameras feature Flir’s unique Multi Spectral Dynamic Imaging (MSX®), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera’s LCD.
With Over-the-air (OTA) updates, your Flir camera will always have the latest firmware, bug fixes, and features. When you connect your camera to the internet, it will automatically search for firmware updates.
The right image analysis and reporting software can greatly improve your business by making it easier for your customers to understand the problem and feel confident that you fixed it.
The Flir Ignite cloud service allows you to back up images directly to the cloud, organize and edit files, and create simple reports. And for advanced editing and reporting, there’s Flir Thermal Studio Suite: a desktop software offering batch processing, feature-rich measurement tools, and customized reports.
1-Touch Level/Span allows you to choose a small area of focus in a thermal image – with one touch of the screen – and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.

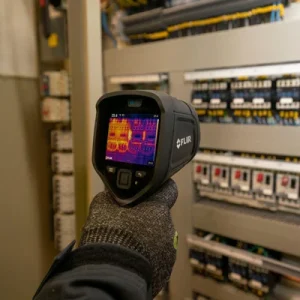

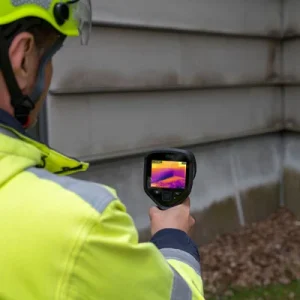

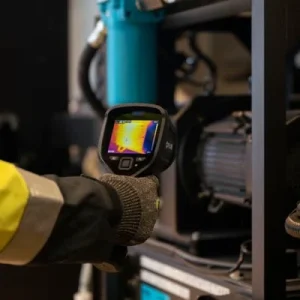

Professional Entry-Level Thermal Camera for Electrical, Mechanical, and Building Inspections
| IR Resolution | 320 × 240 pixels |
|---|---|
| Thermal Sensitivity (NETD) | < 40 mK |
| Field of View | 33° × 25° |
| Minimum Focus Distance | 0.5 m |
| Image Frequency | 9 Hz |
| Focus | Fixed focus |
| Spectral Range | 7.5 – 13 µm |
| Temperature Range |
−20°C to 150°C 0°C to 550°C |
|---|---|
| Accuracy | ±2°C or ±2% |
| Measurement Tools | Center spot, hot spot, cold spot |
| Emissivity Adjustment | Adjustable |
| Display | 3.5-inch LCD |
|---|---|
| Display Resolution | 640 × 480 pixels |
| Image Modes | Thermal, MSX®, Picture-in-Picture |
| Image Storage | Radiometric JPEG |
|---|---|
| Internal Memory | Internal flash storage |
| Connectivity | Wi-Fi, USB |
| Software Compatibility | FLIR Thermal Studio Starter |
| Battery Type | Rechargeable Li-ion battery |
|---|---|
| Operating Time | Approx. 4 hours |
| Charging | USB charging |
| Weight | Approx. 575 g |
|---|---|
| Drop Test | 2 m |
| Protection Rating | IP54 |
| Operating Temperature | -15°C to 50°C |
| Storage Temperature | -40°C to 70°C |
Specifications are subject to change without notice. FLIR and MSX® are trademarks of Teledyne FLIR LLC.
