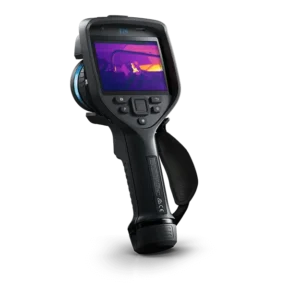

The FLIR E76 offers complete coverage of near and distant targets through a range of lens options. A step up from the FLIR E54, the E76 includes laser-assisted autofocus and 3 area measurement boxes. The 320× 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E76 images directly from the camera to the cloud for easy, secure storage and sharing.
All FLIR Exx-Series cameras now come with a free credit to attend a FLIR Academy training session—a $399 value (details below).
Specifications
- IR Resolution
- 320 × 240 pixels
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
- Field of view (FOV)
- 24° × 18°, 14° × 10°
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Display
- 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media
- Removable SD card
Imaging & Optical
- Color Palettes
- Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch
- Uncooled microbolometer, 17 µm
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Digital Zoom
- 1-4x continuous
- Field of view (FOV)
- 24° × 18°, 14° × 10°
- f-number
- 24°: 1.5
14°: 1.5
- Focal Length
- 24°: 17 mm (0.67 in)
14°: 29 mm (1.41 in)
- Focus
- Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Image Frequency
- 30 Hz
- IR Resolution
- 320 × 240 pixels
- Lens Identification
- Automatic
- Minimum Focus Distance
- 24°: 0.18 m (0.59 ft), 14°: 1.0 m (3.28 ft)
- Minimum Focus Distance with MSX
- 24°: 0.5 m (1.64 ft)
14°: 1.0 m (3.28 ft)
- Non-radiometric IR video streaming
- H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture
- Resizable and movable
- Radiometric IR video recording
- Real-time radiometric recording (.csq)
- Radiometric IR video streaming
- Yes, over UVC
- Spatial resolution (IFOV)
- 24°: 1.33 mrad/pixel
14°: 0.75 mrad/pixel
- Spectral Range
- 7.5-14 µm
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- UltraMax
- Yes
- Viewfinder
- No
