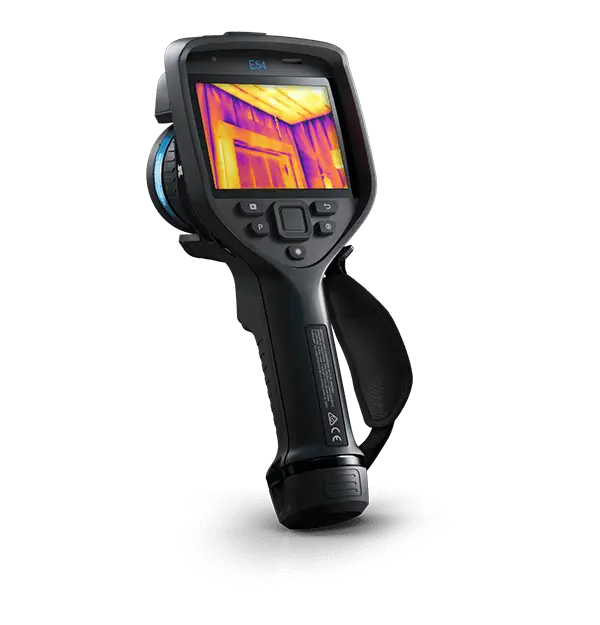

FLIR E54

Advanced Thermal Imaging Camera

The FLIR E54 offers the resolution and sensitivity you need for basic condition monitoring, electrical/mechanical inspection, and building inspection. The 320 ×240 pixel thermal detector accurately measures temperatures up to 650°C (1202°F) and produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX®technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E54 images directly from the camera to the cloud for easy, secure storage and sharing.

Enhanced Resolution, Faster Inspections

Improved Contrast for Faster Troubleshooting

Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.

Features to Help with Diagnosis

The E54 measures up to 650°C (1202°F), offers 3 spotmeters, and displays the max/min temperature within an area live, on-screen.

Streamlined Reporting

Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E54 streamline your workday. (*Optional accessory software)

FLIR E54 Thermal Imaging Camera

Professional Entry-Level Thermal Camera for Electrical, Mechanical, and Building Inspections

Key Features

Thermal resolution 320 × 240 pixels
Standard fixed lens design
FLIR Vision Processing™ with MSX® and UltraMax®
Laser-assisted autofocus for fast and accurate focusing
Rugged and lightweight design for daily field use
Built-in Wi-Fi and Bluetooth connectivity

Main Applications

Electrical inspections (distribution panels, breakers)
Mechanical inspections and troubleshooting
Preventive maintenance programs
Building diagnostics and energy audits
Commercial and light industrial environments

Imaging & Optical Specifications

IR Resolution	320 × 240 pixels
Thermal Sensitivity (NETD)	< 40 mK at 30°C
Field of View (Standard Lens)	24° × 18°
Minimum Focus Distance	0.15 m
Image Frequency	30 Hz
Focus	Laser-assisted autofocus, manual focus
Spectral Range	7.5 – 14 µm

Measurement

Temperature Range	−20°C to 120°C 0°C to 650°C
Accuracy	±2°C or ±2%
Measurement Tools	Spot meters, Area (min/max/avg), Isotherms, Delta T
Emissivity Adjustment	Variable from 0.01 to 1.0

Display & User Interface

Display	4-inch LCD, 800 × 480 pixels
Touch Screen	Capacitive touchscreen
Image Modes	Thermal, MSX®, Picture-in-Picture, Digital Camera

Storage & Connectivity

Image Storage	Radiometric JPEG
Storage Media	Removable SD card
Interfaces	USB-C, HDMI, Wi-Fi, Bluetooth
Cloud Services	FLIR Ignite™

Power System

Battery Type	Rechargeable Li-ion battery
Operating Time	Approx. 4 hours per battery
Battery System	Replaceable, hot-swappable
Charging	In-camera or external charger

Physical & Environmental

Weight	Approx. 1.0 kg (including battery)
Protection Rating	IP54
Drop Test	2 m
Operating Temperature	-15°C to 50°C
Storage Temperature	-40°C to 70°C

Specifications are subject to change without notice. FLIR, MSX®, UltraMax®, and Ignite™ are trademarks of Teledyne FLIR LLC.
