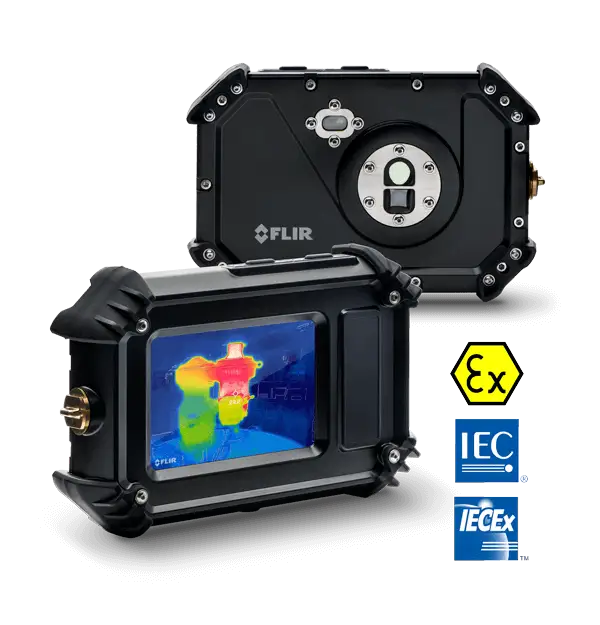

FLIR Cx5

Hazardous Location-Rated Thermal Camera

The FLIR Cx5 is certified for use in many explosive environments, eliminating the need to acquire hot work permits due to gas, vapor, and dust, while making T-Class surveys quick and easy. With FLIR MSX® (Multi-Spectral Dynamic Imaging) and 1-Touch Level/Span, the Cx5 can help you identify potential problems quickly to improve plant performance. The 3.5-inch touchscreen interface is simple to use, and 160 × 120 thermal resolution gives you accurate temperature measurement of nearby targets. Built-in FLIR Ignite™ cloud service provides direct data transfer, storage, and backup, so images are always available and securely stored on all your devices. With the FLIR Cx5 in your toolbox, you’ll always be ready to investigate mechanical and electrical equipment around your production site.

INSPECT SAFELY IN EXPLOSIVE ENVIRONMENTS
Investigate potential problems from a safe distance using FLIR MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span.
The Cx5 eliminates the need for hot work permits in hazardous locations due to gas, vapor and dust, and it conforms to restricted breathing and dust protection standards.
Wirelessly upload and share data, images, and files to the FLIR Ignite™ cloud, and synchronize the camera with FLIR Thermal Studio software for the most powerful thermography analysis and report generation.

FLIR Cx5 Thermal Camera

Intrinsically Safe Thermal Camera for Hazardous Industrial Environments

Key Features

  • Intrinsically safe thermal camera (ATEX, IECEx certified)
  • Thermal resolution 160 × 120 pixels
  • FLIR MSX® image enhancement technology
  • Designed for use in explosive and hazardous areas
  • Built-in Wi-Fi for image transfer and reporting
  • Compact, rugged, and easy to operate

Main Applications

  • Oil & gas facilities
  • Chemical and petrochemical plants
  • Mining and heavy industry
  • Electrical inspections in hazardous areas
  • Preventive maintenance and safety inspections

Imaging & Optical Specifications

IR Resolution 160 × 120 pixels
Thermal Sensitivity (NETD) < 70 mK
Field of View 54° × 42°
Minimum Focus Distance 0.1 m
Image Frequency 8.7 Hz
Focus Fixed focus
Spectral Range 7.5 – 13 µm

Measurement

Temperature Range -20°C to 400°C
Accuracy ±3°C or ±3%
Measurement Tools Center spot, max/min temperature
Emissivity Adjustment Preset and adjustable

Display & User Interface

Display 3.5-inch LCD
Display Resolution 640 × 480 pixels
Image Modes Thermal, MSX®, Picture-in-Picture

Storage & Connectivity

Image Storage Radiometric JPEG
Internal Memory Internal flash storage
Connectivity Wi-Fi, USB
Software Compatibility FLIR Thermal Studio Starter

Power System

Battery Type Rechargeable Li-ion battery
Operating Time Approx. 4 hours
Charging USB charging

Physical & Environmental

Weight Approx. 310 g
Protection Rating IP54
Drop Test 2 m
Operating Temperature -10°C to 50°C
Certifications ATEX, IECEx, UL, CSA

Specifications are subject to change without notice. FLIR and MSX® are trademarks of Teledyne FLIR LLC.
