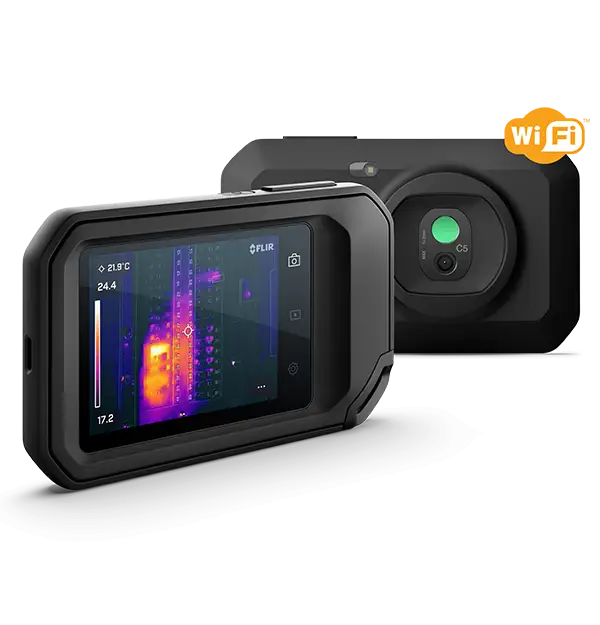

FLIR C5

Compact Thermal Camera

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

Inspect, document, and share quickly with cloud connectivity and Wi-Fi

FIND AND TROUBLESHOOT

Inspect, document, and share quickly with cloud connectivity and Wi-Fi Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span

DOCUMENT AND SHARE

Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers

RUGGED, RELIABLE, COMPACT

Take the pocket-portable C5 with you to every job – it’s IP54 rated for protection against water and dust and designed to withstand a 2 m drop

FLIR C5 Thermal Camera

Compact Professional Thermal Camera for Electrical, Mechanical, and Building Inspections

Key Features

Thermal resolution 160 × 120 pixels
FLIR MSX® image enhancement technology
Integrated 5 MP visual camera
Compact pocket-sized design
Built-in Wi-Fi and Bluetooth connectivity
FLIR Ignite™ cloud compatibility

Main Applications

Electrical inspections (breakers, panels, outlets)
HVAC inspections
Building diagnostics and energy audits
Facility maintenance
Commercial and residential inspections

Imaging & Optical Specifications

IR Resolution	160 × 120 pixels
Thermal Sensitivity (NETD)	< 70 mK
Field of View	54° × 42°
Minimum Focus Distance	0.1 m
Image Frequency	8.7 Hz
Focus	Fixed focus
Spectral Range	8 – 14 µm

Measurement

Temperature Range	-20°C to 400°C
Accuracy	±3°C or ±3%
Measurement Tools	Center spot, max/min temperature
Emissivity Adjustment	Preset and adjustable

Display & User Interface

Display	3.5-inch capacitive touchscreen
Display Resolution	640 × 480 pixels
Image Modes	Thermal, MSX®, Picture-in-Picture

Storage & Connectivity

Image Storage	Radiometric JPEG
Internal Memory	Internal flash storage
Connectivity	Wi-Fi, Bluetooth, USB-C
Cloud Service	FLIR Ignite™

Power System

Battery Type	Rechargeable Li-ion battery
Operating Time	Approx. 4 hours
Charging	USB-C charging

Physical & Environmental

Weight	Approx. 190 g
Drop Test	2 m
Protection Rating	IP54
Operating Temperature	-10°C to 50°C
Storage Temperature	-40°C to 70°C

Specifications are subject to change without notice. FLIR, MSX®, and Ignite™ are trademarks of Teledyne FLIR LLC.
