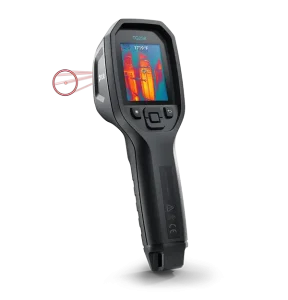

30:1 High Temperature Spot IR Thermal Imaging Camera with Bullseye Laser
Accurately measure temperatures up to 1080°C (1976°F) with a 30:1 spot size ratio and bullseye laser pointer.
Diagnose problems quickly with Flir-patented MSX image enhancement and Improve the details of native thermal images with super resolution, which allows you to upscale images to 320 × 240 (76,800 pixels) resolution.
The IP54 rated Flir TG298 comes complete with a built-in LED worklight for better visibility in dark or poorly lit areas, and a 2 m drop test rating for durability.
High-Temperature Industrial Thermal Imaging Camera with IR Temperature Measurement
| IR Resolution | 160 × 120 pixels |
|---|---|
| Detector Type | Uncooled microbolometer |
| Spectral Range | 8 – 14 µm |
| Field of View (FOV) | 57° × 44° |
| Focus | Fixed focus |
| Image Frequency | 8.7 Hz |
| Temperature Range | -25°C to 1080°C |
|---|---|
| Accuracy | ±3°C or ±3% |
| Spot Size Ratio | 30:1 |
| Measurement Tools | Center spot, max/min temperature |
| Emissivity | Adjustable (0.1 – 1.0) |
| Display | 2.4-inch LCD screen |
|---|---|
| Display Resolution | 320 × 240 pixels |
| Image Modes | Thermal, MSX®, Visual overlay |
| Image Format | Radiometric JPEG |
|---|---|
| Internal Storage | Built-in memory (stores thousands of images) |
| Interface | USB-C |
| Battery Type | Rechargeable Li-ion battery |
|---|---|
| Operating Time | Approx. 4 hours |
| Charging | USB charging |
| Weight | Approx. 394 g |
|---|---|
| Drop Test | 2 m |
| Protection Rating | IP54 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
Specifications are subject to change without notice. FLIR, MSX®, and TG298 are trademarks of Teledyne FLIR LLC.
