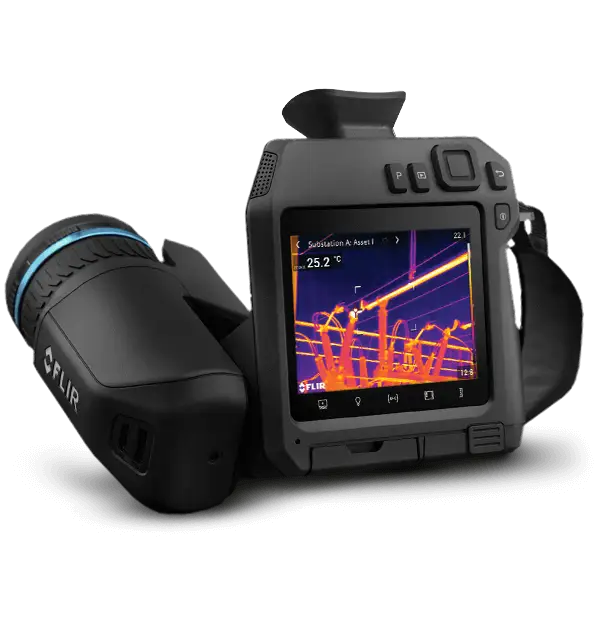

FLIR T865

High-Performance Handheld Infrared Camera

The FLIR T865 thermal imaging camera is a non-contact inspection tool with 180° rotating optical block that allows users to safely and comfortably assess the condition of critical electrical and mechanical equipment in utility and manufacturing applications. With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laser–assisted autofocus, you’ll get highly accurate temperature measurements every time. Pair the T865 with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning; or choose a 6° FOV IR lens to perform inspections on small targets from long distances. The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.

Improve Workflow Efficiencies

Develop inspection routes in FLIR Thermal Studio Pro and upload to a T865 using Route Creator to quickly and easily collect and manage critical data.

Work Safely and Comfortably

Assess the state of equipment from a safe distance, at any angle, or in any lighting condition using the 180° rotating optical block, integrated eyepiece viewfinder, and 4–inch color IPS display

Make Critical Decisions Quickly

Increase in–field efficiency with exceptional measurement accuracy, enhanced thermal imagery, and workflow optimizations to save time and share data faster.

FLIR T865 Thermal Imaging Camera

Advanced High-Performance Thermal Camera for Professional Inspection

Key Features

High-resolution 640 × 480 thermal detector
Flexible rotating optical block (180°)
FLIR Vision Processing™ with MSX®, UltraMax®, and HDR
Laser-assisted autofocus for fast and accurate focusing
On-camera inspection routes and reporting
Wi-Fi, Bluetooth, and USB connectivity

Main Applications

Electrical inspections (substations, switchgear, panels)
Mechanical inspections and predictive maintenance
Utilities, power generation, and transmission
Oil & gas, manufacturing, and heavy industry
Condition-based maintenance programs

Imaging & Optical Specifications

IR Resolution	640 × 480 pixels
Thermal Sensitivity (NETD)	< 30 mK at 30°C
Field of View (Standard Lens)	24° × 18°
Minimum Focus Distance	0.15 m
Image Frequency	30 Hz
Focus	Laser-assisted autofocus, continuous, manual
Spectral Range	7.5 – 14 µm

Measurement

Temperature Range	−20°C to 120°C 0°C to 650°C Optional: up to 2000°C
Accuracy	±2°C or ±2%
Measurement Tools	Spot (multiple), Area (min/max/avg), Isotherms, Delta T, Line profile
Emissivity Correction	Variable from 0.01 to 1.0

Display & User Interface

Display	4-inch LCD, 800 × 480 pixels
Touch Screen	Capacitive touchscreen
Viewfinder	Integrated OLED viewfinder
Image Modes	Thermal, MSX®, Picture-in-Picture, Digital Camera

Storage & Connectivity

Image Storage	Radiometric JPEG
Storage Media	Removable SD card
Interfaces	USB-C, HDMI, Wi-Fi, Bluetooth
Software Compatibility	FLIR Thermal Studio, FLIR Route Creator

Power System

Battery Type	Rechargeable Li-ion battery
Operating Time	Approx. 4 hours per battery
Battery System	Replaceable, hot-swappable
Charging	In-camera or external charger

Physical & Environmental

Weight	Approx. 1.35 kg (including battery)
Protection Rating	IP54
Drop Test	2 m
Operating Temperature	-15°C to 50°C
Storage Temperature	-40°C to 70°C

Specifications are subject to change without notice. FLIR, MSX®, UltraMax®, and Vision Processing™ are trademarks of Teledyne FLIR LLC.
